Panasonic Lumix DMC-FZ20

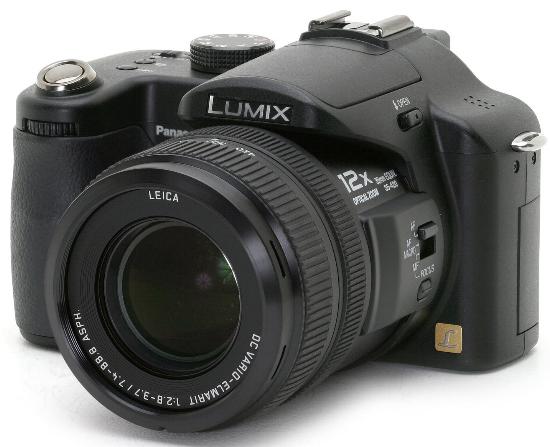

Panasonic Lumix DMC-FZ30
12 x super Zoom (35-420 mm)

Ominaisuudet

Sensor	• 1/1.8" Type CCD • 7.18 x 5.32 mm (info) • 8.0 million effective pixels • 9-pixel readout for video
Image sizes (max)	• 3264 x 2448 (4:3) • 3248 x 2160 (3:2) • 3072 x 1728 (16:9)
Image formats	• RAW • TIFF • JPEG
Lens	• 35 - 420 mm equiv. • 12x optical zoom • F2.8 - F3.7 • 14 elements in 10 groups • MEGA OIS Image Stabilization • Non-extending • Internal zoom & focus • 55 mm lens thread
Zoom	Mechanically linked zoom ring
Digital zoom	• 2x or 4x • "Extra optical zoom" for smaller sizes
AE Lock	• Half-press shutter release • AE-Lock button
Control dials	Front and Rear
Macro mode	On focus mode switch (lens barrel)
Manual focus	• On focus mode switch • Has one-shot AF button
Shutter speed	60 - 1/2000 sec
Aperture	• Wide: F2.8 - F11 • Tele: F3.7 - F11
Scene modes	14 modes
Viewfinder	• 0.44" EVF • 235,000 pixels • In-line with center of lens
LCD monitor	• 2.0" TFT LCD • 235,000 pixels • Flip-down and twist
Thumbnail index	• 9 images • 16 images • 25 images
Orientation sensor	Yes
Battery	• Lithium-Ion rechargeable • 730 mAh, 7.2V
Weight (inc batt)	740 g (1.6 lb)
Dimensions	141 x 86 x 138 mm (5.5 x 3.4 x 5.4 in)

Sensor

• 1/1.8" Type CCD
• 7.18 x 5.32 mm (info)
• 8.0 million effective pixels
• 9-pixel readout for video

Image sizes
(max)

• 3264 x 2448 (4:3)
• 3248 x 2160 (3:2)
• 3072 x 1728 (16:9)

Image formats

• RAW
• TIFF
• JPEG

Lens

• 35 - 420 mm equiv.
• 12x optical zoom
• F2.8 - F3.7
• 14 elements in 10 groups
• MEGA OIS Image Stabilization
• Non-extending
• Internal zoom & focus
• 55 mm lens thread

Zoom

Mechanically linked zoom ring

Digital zoom

• 2x or 4x
• "Extra optical zoom" for smaller sizes

AE Lock

• Half-press shutter release
• AE-Lock button

Control dials

Front and Rear

Macro mode

On focus mode switch (lens barrel)

Manual focus

• On focus mode switch
• Has one-shot AF button

Shutter speed

60 - 1/2000 sec

Aperture

• Wide: F2.8 - F11
• Tele: F3.7 - F11

Scene modes

14 modes

Viewfinder

• 0.44" EVF
• 235,000 pixels
• In-line with center of lens

LCD monitor

• 2.0" TFT LCD
• 235,000 pixels
• Flip-down and twist

Thumbnail index

• 9 images
• 16 images
• 25 images

Orientation sensor

Yes

Battery

• Lithium-Ion rechargeable
• 730 mAh, 7.2V

Weight (inc batt)

740 g (1.6 lb)

Dimensions

141 x 86 x 138 mm (5.5 x 3.4 x 5.4 in)

Body Material	Metal and Plastic
Sensor	• 1/1.8" Type CCD • 8.3 million pixels total • 8.0 million effective pixels
Image sizes	• 3264 x 2448 • 3248 x 2160 • 2560 x 1920 • 2048 x 1536 • 1600 x 1200 • 1280 x 960
Movie clips	• 640 x 480 / 320 x 240 • 30 / 10 fps • With audio • Limited only by storage • QuickTime M-JEPG (.mov) format

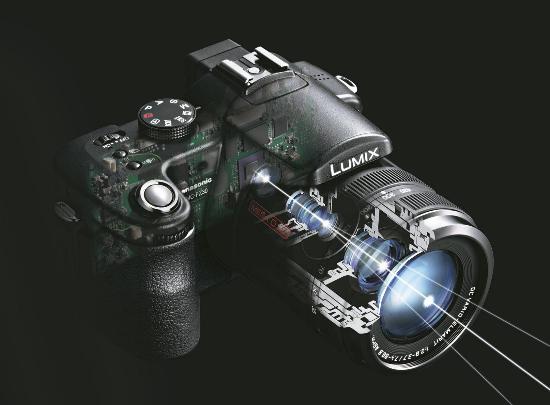

Lens	• 35 - 420 mm equiv. (12x zoom) • F2.8 - F3.7 • 14 elements in 10 groups (3 aspherical, 1 ED lens) • Labeled as "LEICA DC VARIO-ELMARIT" • Non-extending / internal zoom • Mechanical linked zoom ring • Focus-by-wire focus ring • 55 mm lens thread
Focus	• 1 point • 1 point high-speed • 3 point high-speed • 9 point • Spot • 5cm macro mode (Wide), 200cm (Tele) • AF assist lamp
Shooting mode	• Program (with shift) • Aperture Priority • Shutter Priority • Manual • Macro • Moving Image • Portrait • Sports • Scenery • Night Scenery • Night Portrait • Fireworks • Party • Snow • Self-Portrait • Food • Baby • Soft Skin • Candle • Starry Sky • AE compensation -2.0EV to +2.0 EV in 1/3EV steps • Auto bracketing
Sensitivity	• Auto • ISO 80, 100, 200, 400
Shutter speed	• All modes except Manual: 8 - 1/2000 sec • Manual mode: 60 - 1/2000 sec
Aperture	• Wide: F2.8 - F11 • Tele: F3.7 - F11
Metering	• Intelligent Multiple • Center weighted • Spot
White Balance	• Auto • Daylight, cloudy, halogen, flash, white set • 2x Custom WB (manual) • White Balance fine tune (R-B)
Image parameters	• Contrast (Low, Standard, High) • Sharpness (Low, Standard, High) • Saturation (Low, Standard, High) • Noise reduction (Low, Standard, High) • Color effects (Cool, Warm, Black & White, Sepia)
Continuous	• Full resolution: 3 or 2 fps • Full resolution: max 9 images (standard mode), 5 images (fine mode) • Infinite consecutive 2 fps
Flash	• Built-in pop-up flash • Modes: Auto, Auto with red-eye reduction, Slow sync, , Slow sync with red-eye reduction, On/Off • Range: 0.3 to 7.0 m (wide) • External flash via hot-shoe • Flash exposure compensation (+/-2 EV in 0.3 EV steps)
Storage	• SD/MMC • 32 MB SD supplied*
Viewfinder	• EVF (230,000 pixels), 0.44-inch • Field of view approx 100% • -4 to +4 dioptre adjustment

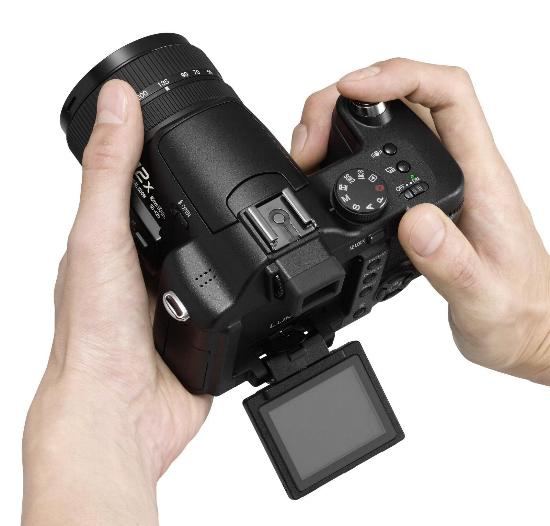

LCD monitor	• 2.0 " TFT LCD • 230,000 pixels • Flip down and twist
Connectivity	• USB 2.0 Full Speed (12 Mbits/s) • A/V out • DC-IN • Remote socket
Power	• Lithium-Ion rechargeable battery • Charger included
In the box*	• Battery Charger • Battery Pack • 32MB SD Memory Card • Lens Cap • Lens Hood • A/V & USB Cable • Strap • CD-ROM inc ArcSoft software bundle
Other features	• PictBridge and DPOF compatible • Mega Optical Image Stabilization • Live Histogram • Built-in speaker and microphone • In-camera picture resizing and cropping • Voice annotation • 2/10 second self-timer • Venus Engine II™ LSI Image Processor • TIFF and RAW modes
Weight	740 g (inc batt) 674 g (10.4 oz) (no bat)
Dimensions	141 x 86 x 138 mm (5.5 x 3.4 x 5.4 in)

Body Material

Metal and Plastic

Sensor

• 1/1.8" Type CCD
• 8.3 million pixels total
• 8.0 million effective pixels

Image sizes

• 3264 x 2448
• 3248 x 2160
• 2560 x 1920
• 2048 x 1536
• 1600 x 1200
• 1280 x 960

Movie clips

• 640 x 480 / 320 x 240
• 30 / 10 fps
• With audio
• Limited only by storage
• QuickTime M-JEPG (.mov) format

Lens

• 35 - 420 mm equiv. (12x zoom)
• F2.8 - F3.7
• 14 elements in 10 groups (3 aspherical, 1 ED lens)
• Labeled as "LEICA DC VARIO-ELMARIT"
• Non-extending / internal zoom
• Mechanical linked zoom ring
• Focus-by-wire focus ring
• 55 mm lens thread

Focus

• 1 point
• 1 point high-speed
• 3 point high-speed
• 9 point
• Spot
• 5cm macro mode (Wide), 200cm (Tele)
• AF assist lamp

Shooting mode

• Program (with shift)
• Aperture Priority
• Shutter Priority
• Manual
• Macro
• Moving Image
• Portrait
• Sports
• Scenery
• Night Scenery
• Night Portrait
• Fireworks
• Party
• Snow
• Self-Portrait
• Food
• Baby
• Soft Skin
• Candle
• Starry Sky
• AE compensation -2.0EV to +2.0 EV in 1/3EV steps
• Auto bracketing

Sensitivity

• Auto
• ISO 80, 100, 200, 400

Shutter speed

• All modes except Manual: 8 - 1/2000 sec
• Manual mode: 60 - 1/2000 sec

Aperture

• Wide: F2.8 - F11
• Tele: F3.7 - F11

Metering

• Intelligent Multiple
• Center weighted
• Spot

White Balance

• Auto
• Daylight, cloudy, halogen, flash, white set
• 2x Custom WB (manual)
• White Balance fine tune (R-B)

Image parameters

• Contrast (Low, Standard, High)
• Sharpness (Low, Standard, High)
• Saturation (Low, Standard, High)
• Noise reduction (Low, Standard, High)
• Color effects (Cool, Warm, Black & White, Sepia)

Continuous

• Full resolution: 3 or 2 fps
• Full resolution: max 9 images (standard mode), 5 images (fine mode)
• Infinite consecutive 2 fps

Flash

• Built-in pop-up flash
• Modes: Auto, Auto with red-eye reduction, Slow sync, , Slow sync with red-eye reduction, On/Off
• Range: 0.3 to 7.0 m (wide)
• External flash via hot-shoe
• Flash exposure compensation (+/-2 EV in 0.3 EV steps)

Storage

• SD/MMC
• 32 MB SD supplied*

Viewfinder

• EVF (230,000 pixels), 0.44-inch
• Field of view approx 100%
• -4 to +4 dioptre adjustment

LCD monitor

• 2.0 " TFT LCD
• 230,000 pixels
• Flip down and twist

Connectivity

• USB 2.0 Full Speed (12 Mbits/s)
• A/V out
• DC-IN
• Remote socket

Power

• Lithium-Ion rechargeable battery
• Charger included

In the box*

• Battery Charger
• Battery Pack
• 32MB SD Memory Card
• Lens Cap
• Lens Hood
• A/V & USB Cable
• Strap
• CD-ROM inc ArcSoft software bundle

Other features

• PictBridge and DPOF compatible
• Mega Optical Image Stabilization
• Live Histogram
• Built-in speaker and microphone
• In-camera picture resizing and cropping
• Voice annotation
• 2/10 second self-timer
• Venus Engine II™ LSI Image Processor
• TIFF and RAW modes

Weight

740 g (inc batt)
674 g (10.4 oz) (no bat)

Dimensions

141 x 86 x 138 mm (5.5 x 3.4 x 5.4 in)
